400M NS
The Tanis 400M NS (Non-Starch) is the ideal solution for producers ready to take the next step in automation. With medium capacity, this line is specifically designed for streamlined production of gummies and jellies with functional ingredients. Compared to the S model, the 400M NS offers a higher level of integration, reducing reliance on manual intervention. Thanks to its highly accurate dosing system and efficient mixing system, you are assured of consistent, high-quality results, batch after batch, year after year.
lines, tailor-made.
Capacity
Up to 90,000 pcs/h
Number of colours/flavours
Up to 4
Operators (continuous)
4-5 people
Optional
Vitamins / Minerals
Scale up with confidence.
For ambitious startups and producers in the nutraceutical sector, the 400M NS serves as the perfect bridge to full industrial scalability. The line is completely Non-Starch, which is essential for the hygiene standards required by the health market. Since this system is also modular, you retain the flexibility to expand your facility step by step. Whether you start with an advanced depositor or opt directly for an integrated kitchen setup: you invest in a future-proof platform that grows with your success in the world of functional confections.
The Full Journey of Candy Production
01

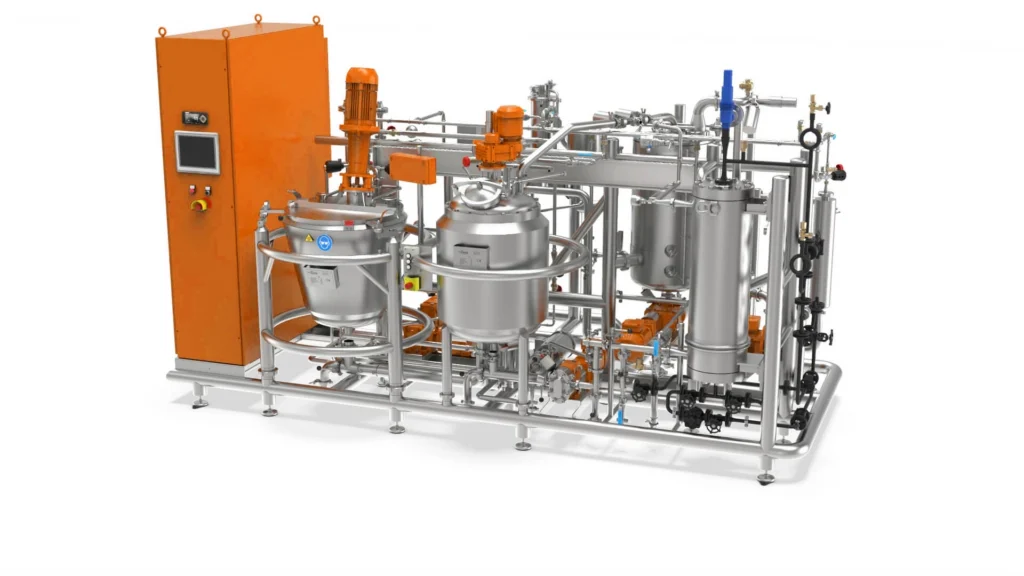

Kitchen: Cooking
Optimized pre-blending vessel to ensure a homogenous mixture. Continuous, recipe driven batch system. Single operator operation. Continuous cooking process, with excellent temperature control to prevent burning. Integrated vacuumizer to remove air bubbles, flashing off moisture and quick reduction of temperature. Automatic cleaning procedure. Remote assistance through a modem. Suitable for different combinations of gelling agents, gelatin and pectin. Optional automatic dosage of color, flavor, acid and API. Optional batch reporting.
02

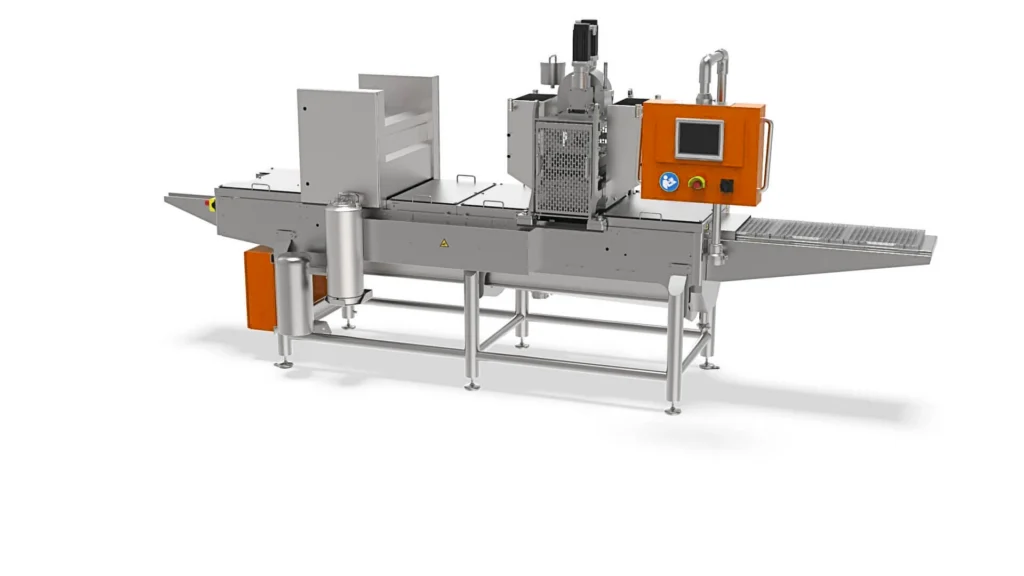

Moulding
The 400M Starchless Moulding system is engineered for the high-precision production of gums and jellies using starchless moulds. This compact unit features a specialized depositing pump with a closed design, ensuring dosage accuracy is completely independent of static pressure. With an integrated in-line release agent application unit and automatic tray indexing, the system guarantees a consistent 0.1-gram accuracy across the entire mould while maintaining a clean, controlled production environment.
03

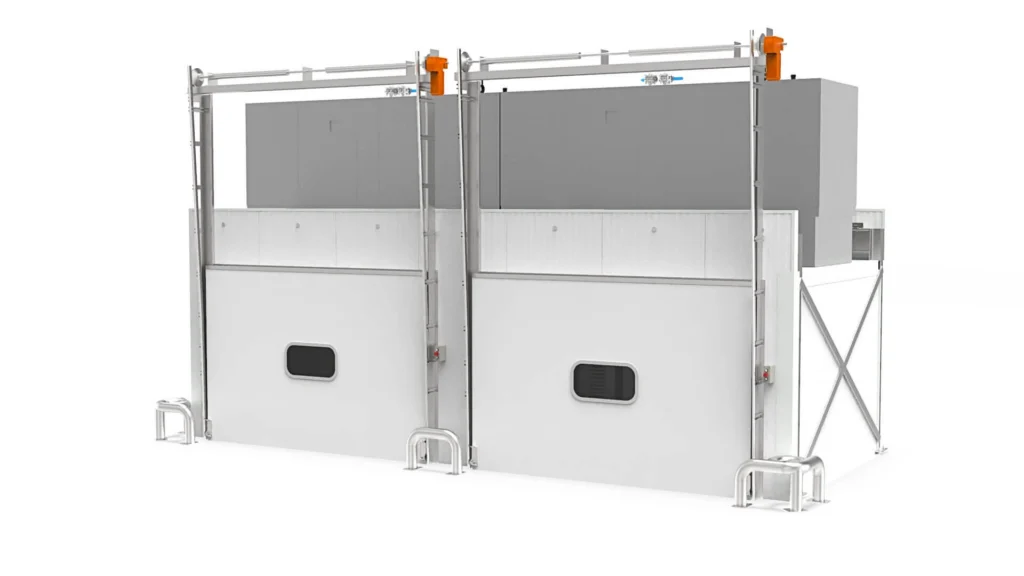

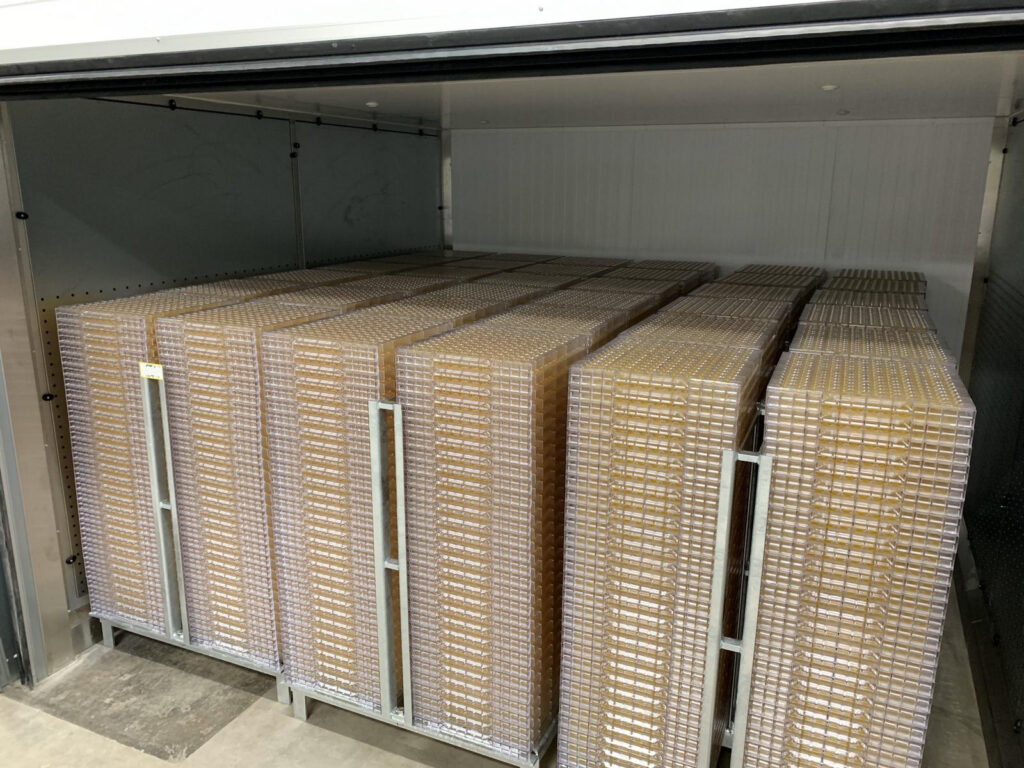

Conditioning
Tanis conditioning rooms are built to a proven modular concept which incorporates an controlled airflow, integrated air handler with dessicant dryer. This ensures a consistent, evenly dispersed conditioned airflow though the stacks of trays.
04

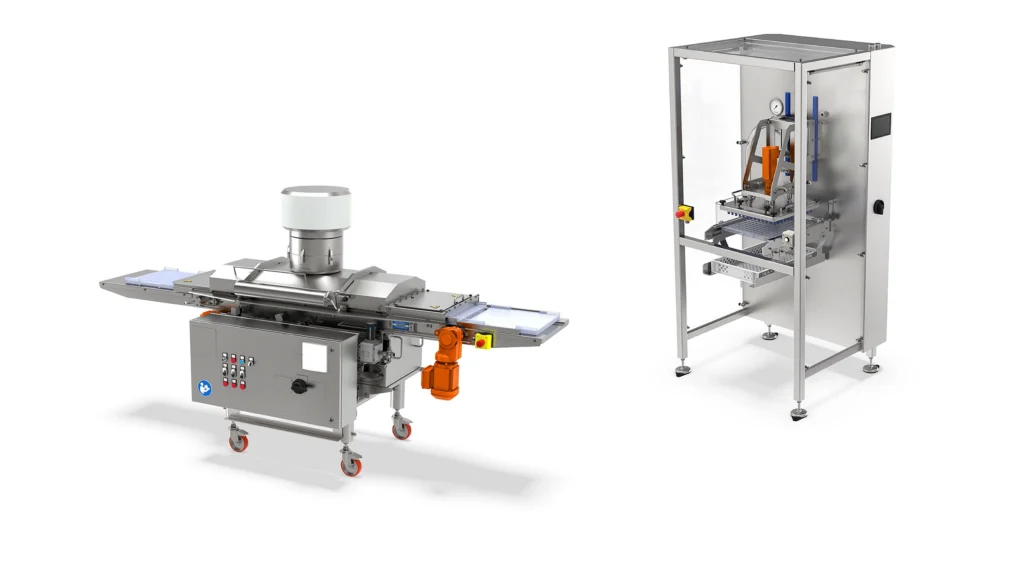

Demoulding
Our 400M series offers two versatile demoulding options tailored to your production needs. The vacuum demoulder utilizes suction cups and minimal compressed air for the gentle release of candy from polycarbonate moulds, featuring a small footprint and manual tray handling. Alternatively, the blow-out demoulding system provides a fast and sanitary solution, using a controlled jet-airflow to efficiently release gummies onto a conveyor. Both systems are designed for easy manual infeed and outfeed, meeting international safety standards (CE/USA) and offering flexibility for various regional voltages.
05

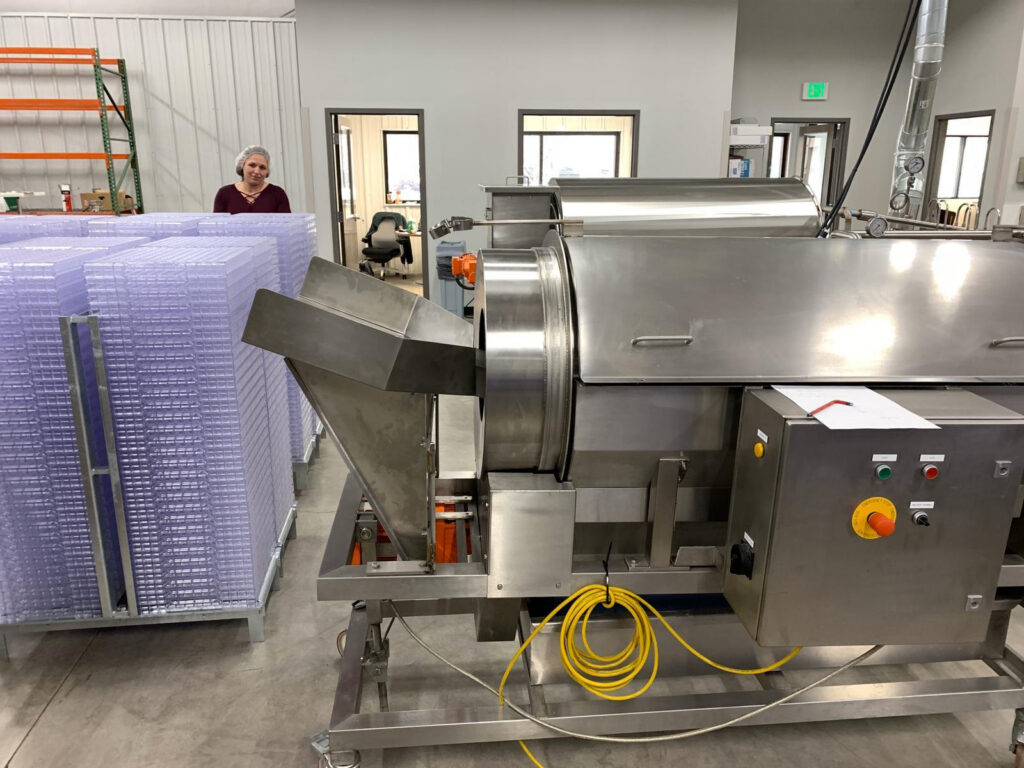

Finishing
Our finishing lines offer precise control over the final product characteristics. We provide high-capacity sanding systems for sugar and matte flake application, alongside automated oiling drums for uniform polishing. These solutions are engineered to ensure consistent coating quality, prevent product adhesion, and achieve the desired visual finish, ranging from high-gloss to matte.
Complete production lines, tailor-made.
One goal, One solution, One family
We believe in the power of One. With one common goal and one integrated total solution, we build a lasting relationship and create a shared future together. By integrating the four production stages of gummy and jelly candy into one comprehensive solution we achieve your goal of producing candy even more efficiently. As a family business, we understand the importance of involvement and loyalty. These values run deep in our company, and we believe that by working together towards a common goal, we can accomplish great things.
Let’s embrace the power of One.
