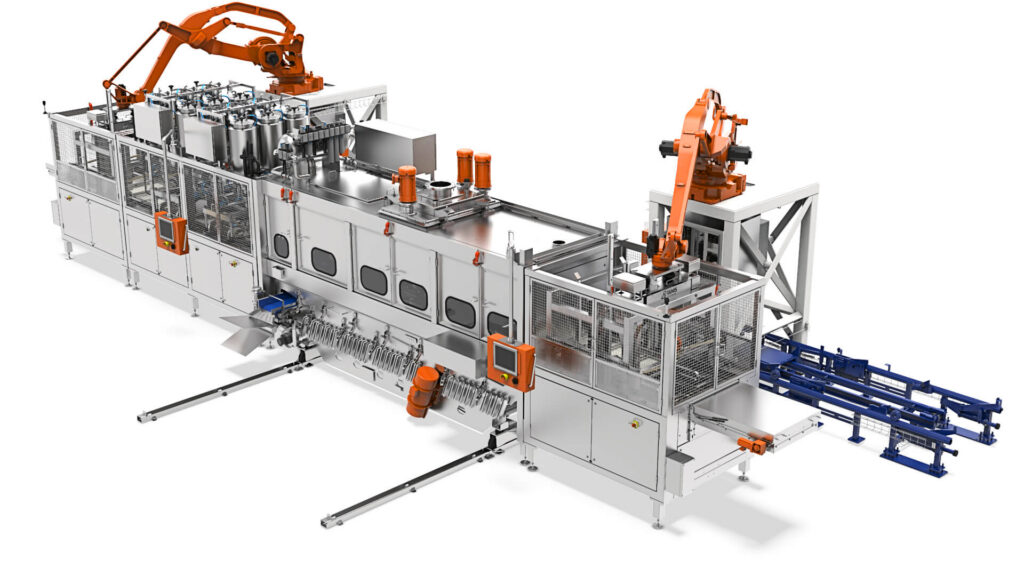

800 Robotic High Capacity
The Tanis 800 Robotic High Capacity is designed for producers aiming for extremely high output without compromising process stability. Thanks to the innovative double-tray transport, this line achieves impressive production volumes at relatively low machine speeds. This results in a smoother process with less wear, while maximizing your yield of gummies, jellies, and nutraceuticals.
lines, tailor-made.
Capacity
Up to 5,000 kg/h
Number of colours/flavours
6 to 12
Operators (continuous)
5-6 people
Optional
Vitamins / Minerals
Engineered for non-stop performance and maximum throughput.
This fully integrated production line is equipped with the advanced Automated Track System (ATS), allowing the entire process to automatically adapt and stay perfectly synchronized. Like the standard robotic line, operation is highly efficient; only three people are needed to manage the entire setup. Combined with flexible kitchen configurations, this machine offers unprecedented capacity per square meter, perfectly suited for the most modern manufacturing facilities.
The Full Journey of Candy Production
01
Kitchen: Pre-mix
For preparing your pre-cooked candy mass, we ensure proper mixing of your main ingredients, whether manually or automatically, according to your needs. Our unique design and customization ensure that all ingredients are handled appropriately, while maintaining efficiency, sustainability, and accuracy.
02
Kitchen: Cooking
Understanding your requirements, we will ensure that you receive the most suitable cooking method for your products. For gums and jellies, we typically prefer continuous cooking under pressure to keep cooking times short and maintain high product quality. After cooking, we use a vacuum chamber to evaporate water, remove air bubbles, and efficiently lower the temperature to prepare for the final step.
03
Kitchen: Blending
To blend in the post cook ingredients like colour, flavour, acid and heat sensitive supplements we make use of our ABS or AMS skids with optional preparation skids to mix in special ingredients. In these skids we make sure accurate dosing and homegenous mixing are top priority.
04
Moulding
A robot places the empty trays, which are then oiled to improve releasing properties. After that, the casting pump casts the candy. Then a second robot stacks the full trays on a pallet which is automatically placed in the drying room of the next skid. The moulding line takes care of the demoulding process as well, where the robot places the full trays from the drying room and takes the finished candy out of the tray.
05
Conditioning
Tanis conditioning rooms are built to a proven modular concept which incorporates an controlled airflow, integrated air handler with dessicant dryer. This ensures a consistent, evenly dispersed conditioned airflow though the stacks of trays.
06
Finishing
Our finishing lines offer precise control over the final product characteristics. We provide high-capacity sanding systems for sugar and matte flake application, alongside automated oiling drums for uniform polishing. These solutions are engineered to ensure consistent coating quality, prevent product adhesion, and achieve the desired visual finish, ranging from high-gloss to matte.
Complete production lines, tailor-made.
One goal, One solution, One family
We believe in the power of One. With one common goal and one integrated total solution, we build a lasting relationship and create a shared future together. By integrating the four production stages of gummy and jelly candy into one comprehensive solution we achieve your goal of producing candy even more efficiently. As a family business, we understand the importance of involvement and loyalty. These values run deep in our company, and we believe that by working together towards a common goal, we can accomplish great things.
Let’s embrace the power of One.
